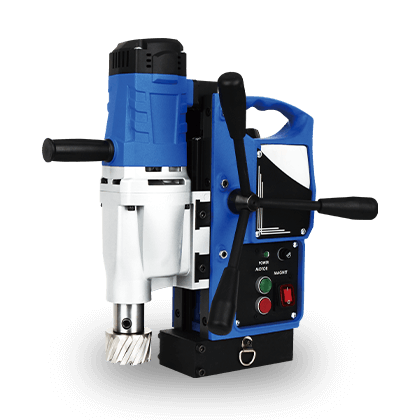

SMD 35B MAGNETIC DRILL MACHINE

1.Motor component is from Japan and Taiwan,it is mads of Aluminum Alloy. Tough and Strong materials provide longer lifespan,so the maintenance cost slower and hidher reliability

2.Built-in Coolant Tank and it gives smooth coolant flow.

3.Magnetic drilling machine is equipped with the strongest Dual-Coil Electromagnets With 750kgf holding power.

4.Integrated cable routing to protect the cable from damage

• Voltage  :  110V AC , 50/60HZ  / 220V AC , 50/60HZ
• Motor Power  :  1050 Watt
• Speed Under Load  :  750 RPM
• Hole Diameter  :  35 mm
• Cutting Depth  :  50 mm
• Magnet Power  :  750 kgf
• Magnet Size  :  182 mm x 100 mm x 45 mm
• Drill Chuck System  :  19.15 mm (3/4”)
• Dimension  :  Length : 390 mm
     :  Width : 226 mm
     :  Height : 350 mm
• Weight  : 15kg
